Architecture patterns for Apps

Oct 11, 2023 10:53 AM

Architecture patterns for building apps

Abstract

When researching architecture patterns to I encounter a lot of information that turns to be confusing and even more when comparing and switching between platforms, this note aims to give clarification in this regard.

What are Architecture Patterns

An app has to be planned, and architecture patterns help with that planning process, they are commonly used solutions or approaches for designing the structure and organisation of software.

They provide guidelines and best practices that allow the creation of scalable, maintainable and robust applications.

What is a design pattern?

Disclaimer

You can have multiple Architecture patterns in a project, this can be within the same layer or different ones

Core Principles

Separation of concerns

What is Separation of concerns pricniple?

The most important principle to follow is this separation of concerns. A common mistake is to have all the logic inside a UI Element (like a React Component, Android Activity/Fragment or an iOS View), these UI elements should only contain UI-related logic and bind user interaction to the state holders that then will update the data that the UI shows to the user.

Single source of truth

What is Single source of truth principle?

For every data type defined in your app (i.e a Note or User type) you should assign a Single Source of Truth (SSOT) to it. So this SSOT is the owner of that data and only he can expose the data using a inmutable type, and to modify data the SSOT exposes methods that are accessible from other layers. (This should be the Repository calling an API or Dao for a data base).

In an offline-first application, the source of truth for application data is typically a database.

This pattern brings multiple benefits:

  • It centralises all the changes to a particular type of data in one place.
  • It protects the data so that other types cannot interfere with it.
  • It makes changes to the data more traceable. Thus, bugs are easier to spot.

Unidirectional Data Flow

What is Unidirectional Data Flow?

The single source of truth is often used with the Unidirectional Data Flow (UDF) pattern. In this pattern, state flows in only one direction. The events that modify the data flow in the opposite direction.
Events are usually triggered from the lower-scoped types (i.e UI Component) until they reach the SSOT for the corresponding data type.

Drive UI from data models

If you base your app architecture on data model classes, you make your app more testable and robust.

Most know architecture patterns

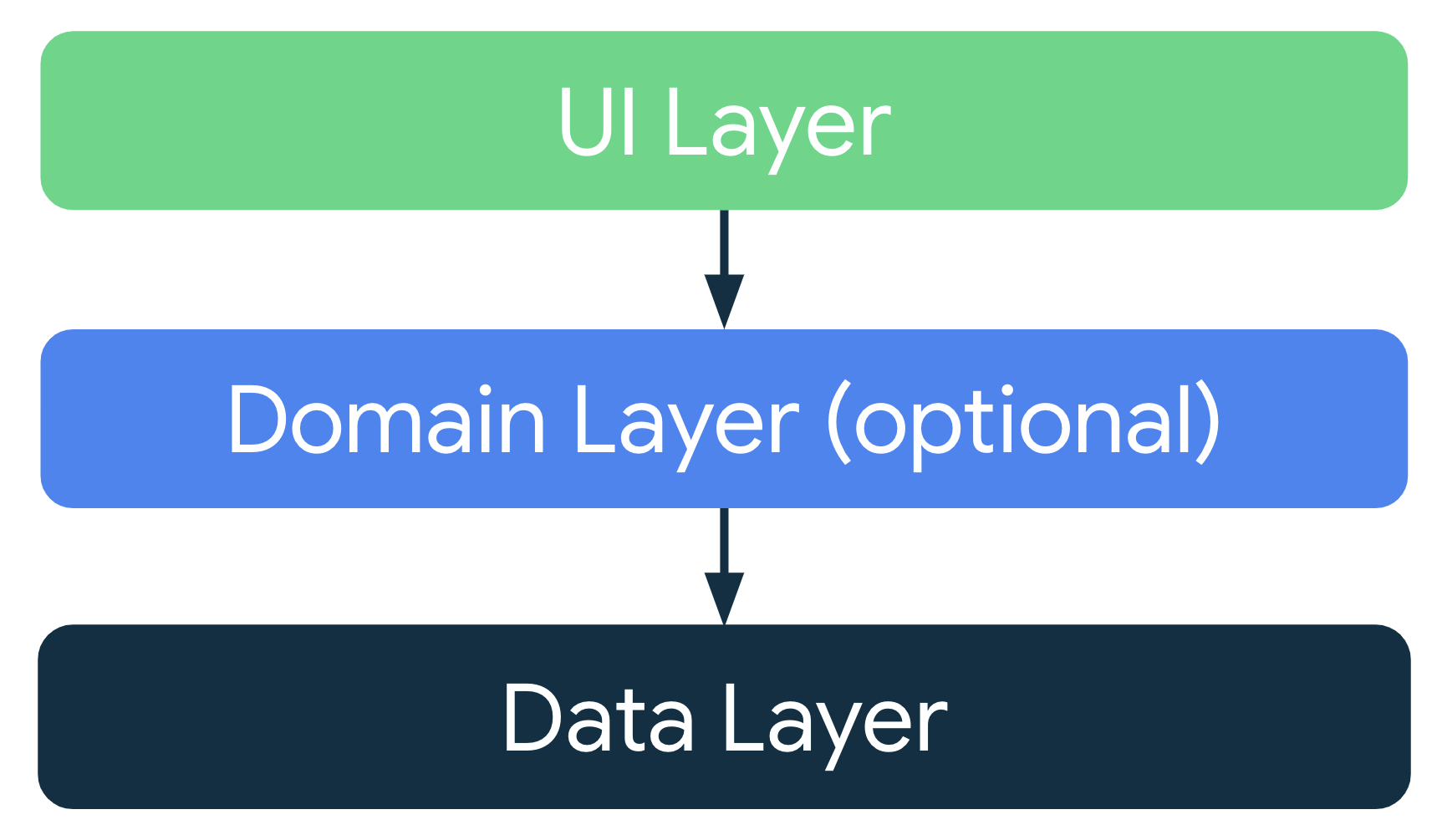

Before we dive into the architecture patterns I'd like to categorise them based on the areas they focus on and I believe that Clean Architecture makes the separation very easy to understand by having presentation, data and domain layers .
So instead of a full list of architecture patterns I will give you a list of architectures for each layer and how they can interact with each other.

The UI Layer

Architecture Patterns

There are multiple Design patterns that can help us avoid common mistakes on the UI layer.

MVVM

MVVM is the Go-To in Modern Mobile Development, and it works well by separating the UI data from the UI state, for Complex applications you can use MVI

MVC
Flux Architecture

While MVVM is the option for Mobile development (but not limited to it) Flux architecture is the most used architecture in the web. This mainly because of the complexity and amount of components that a website can have.

The Data layer

Architecture Patterns

The Domain layer

The domain layer just contains pure-logic and no architecture pattern should be necessary as the class is not tided to the app's lifecycle or framework, but here are some recommendations when you need to implement them.

  1. Multiple sources: If your app uses local and remote resources and you have to make operations on top of them i.e get the newest or merge objects, this is a place where a Domain Layer can help you. A useCase might be of help for you and if the data model is different you can create a common model for your dataSources.

  2. Joining Repositories: If you need to inject multiple repositories and perform repetitive operations on them to join them in your UI layer (such as ViewModel), consider creating a separate repository that handles the joining of those two repositories.

Relates to

Architecture Patterns for Building WebApps

References

Guide to app architecture
